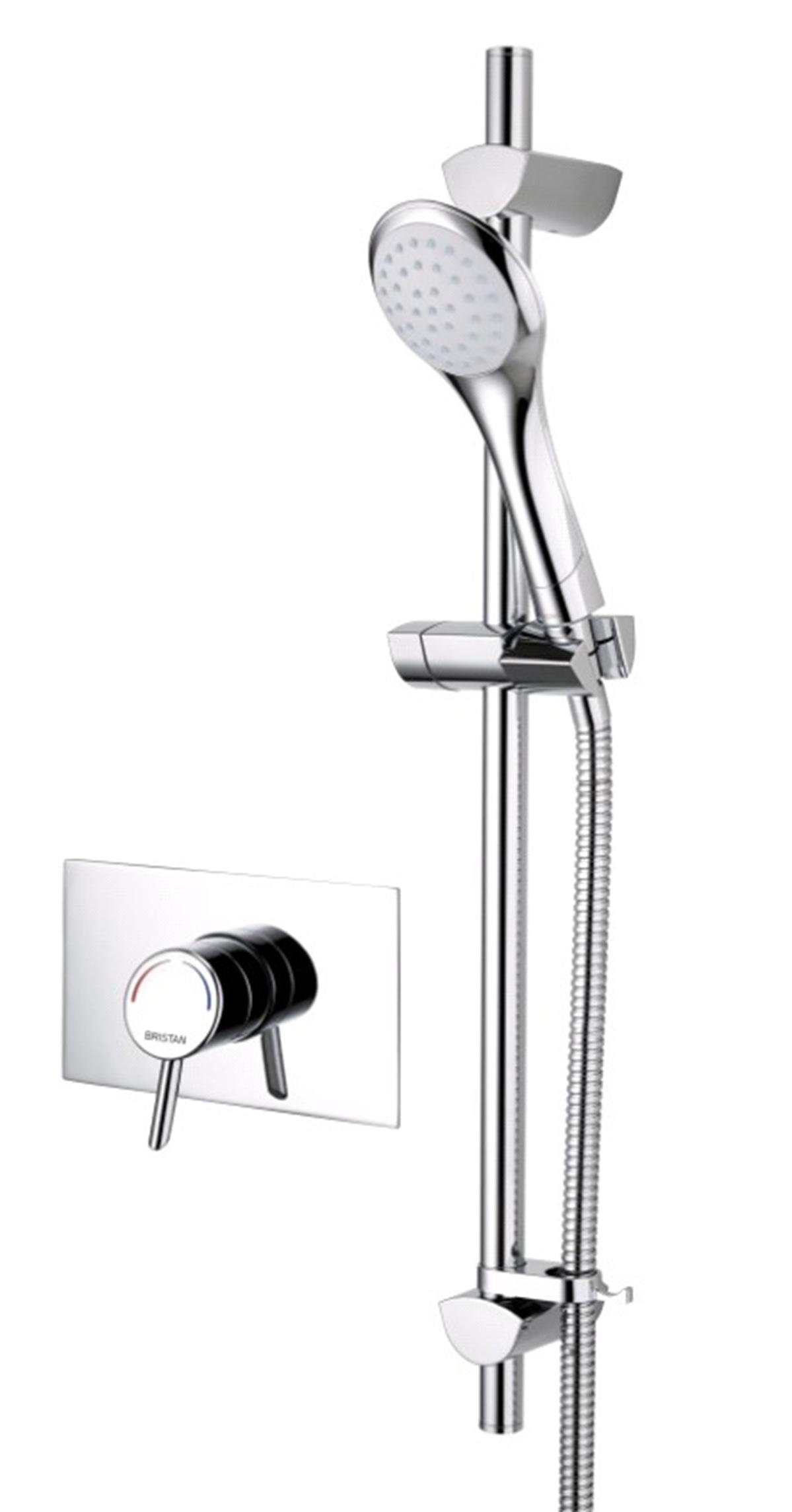

Bristan | Acute | AE SHCAR C | Complete Shower
Bristan | Acute | AE SHCAR C | Complete Shower

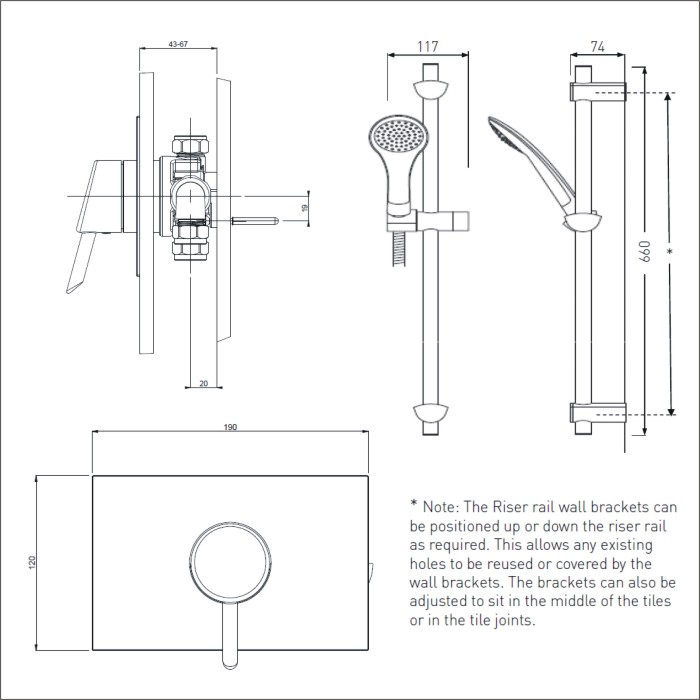

Bristan | Acute | AE SHCAR C | Complete Shower | Technical Drawing

Description

  • Concealed Thermostatic Shower Valve
  • Operation: Sequential lever control
  • Connection Inlet: 15mm compression elbows
  • Connection Outlet: G½ "
  • Working pressure range: 0.1 - 5.0 bar
  • Flow rate: 6.5 l/min open outlet at 0.1 bar
  • Suitable for most plumbing system, preferably balanced
  • Temperature: Pre-set Max 43 degrees
  • Body is of brass constructed
  • Swivel inlet elbows with 152mm centres, valve can be fed from top, bottom or rear
  • Suitable for wall cavity depths between 43mm - 67mm
  • Supplied with 1.5m shower hose, riser rail, hose retainer, single function handset wit rub clean nozzles and concealing plate
  • Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of injury
  • Factory set to a maximum of 43 degrees
  • 5 year manufactures warranty

Specifications and Downloads

Documents

Click to DownloadBristan-Acute-AE-SHCAR-C-Complete-Shower-TD.pdf
Click to Download
